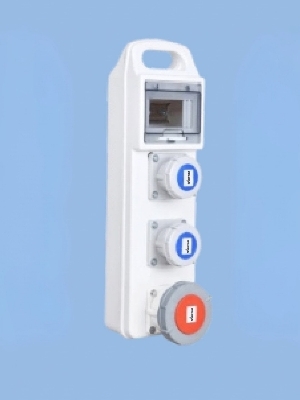

Portable Junction box IP 67 16A 2P+E Socket - 2Nos & 32A 3P+E+N socket - 1Nos

Send Inquiry

Request To Call Back

Portable Junction box IP 67 16A 2P+E Socket - 2Nos & 32A 3P+E+N socket - 1Nos

Price 4505 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Portable Junction box IP 67 16A 2P+E Socket - 2Nos & 32A 3P+E+N socket - 1Nos Specification

Thickness
Enclosure thickness ~3 mm

Usage & Applications
Suitable for portable power distribution at construction sites, outdoor events, industrial applications, and temporary power setups.

Surface Finish
Matte textured for insulation and durability

Pole Type
2P+E (2 Nos), 3P+E+N (1 No)

Weight
Approx. 2.6 kg

Features
IP67 waterproof and dustproof design, integrated carrying handle, lockable transparent cover for MCB protection

Mounting Type
Portable/Wall-mountable

Product Type
Portable Junction Box

Material
High-impact thermoplastic enclosure

Rated Power
16A & 32A

Length
Approx. 320 mm

Voltage
230V (16A sockets), 400V (32A socket)

Input Voltage
230V/400V AC

Working Temperature
-25C to +40C

Rated Current
16A (blue sockets), 32A (red socket)

Socket
2 x 16A 2P+E, 1 x 32A 3P+E+N, IP67 rated

Color
White body with blue and red socket outlets

Height
Approx. 380 mm

Indicators
Provision for power ON indicator

MCB Provision
Yes, with transparent window for protection and monitoring

Service Life
> 20,000 mating cycles

Certification Standard
IEC 61439-4, EN 60439-4

Frequency
50/60 Hz

Operating Position
Vertical

UV Resistance
Yes, suitable for outdoor use

Dustproof
Yes

Ingress Protection
IP67 (dust tight and protected against immersion)

Enclosure Color
White (RAL 9016)

Handle
Ergonomic design for portability

Protection Class
Class II (double insulated)

Number of Outlets
3 (2 x 16A, 1 x 32A)

Cable Entry
Bottom/side gland

Shock Proof
Yes, high dielectric strength housing

Portable Junction box IP 67 16A 2P+E Socket - 2Nos & 32A 3P+E+N socket - 1Nos Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1000 Pieces Per Week

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About Portable Junction box IP 67 16A 2P+E Socket - 2Nos & 32A 3P+E+N socket - 1Nos

Discover the trending Portable Junction Box IP67, crafted for sizzling efficiency and potent performance in diverse power distribution scenarios. Featuring two remarkable 16A 2P+E sockets and one blue-ribbon 32A 3P+E+N socket, this enclosure boasts IP67 certification-dust-tight and water-immersible. Procure this shockproof, dustproof unit with a robust high-impact thermoplastic body, ergonomic handle, UV resistance, and extended service life over 20,000 cycles. With integrated power indicators, MCB protection, and compliance with top standards, it's the ultimate portable solution for outdoor events, industrial sites, and rapid power setups.

Versatile Application and Usage

Eminently suitable for construction sites, outdoor events, industrial complexes, and temporary power setups, the IP67 Portable Junction Box streamlines the provisioning of safe, reliable power across varied terrains. Designed for vertical operation, it easily adapts through both portable and wall-mountable methods. Its durable build and ingress protection enable effective use in any plant application, ensuring uninterrupted service even in challenging environments. The ergonomic handle supports effortless relocation for task-specific deployments.

Packaging, Certification, and Sample Availability

Each Portable Junction Box is securely handed over in robust packaging to guarantee its safe arrival and immediate usability. Certified to IEC 61439-4 and EN 60439-4 standards, every unit upholds strict quality benchmarks for reliable exchange in professional networks. Samples are available for preliminary evaluation, offering an unparalleled opportunity to experience its performance before procurement, assuring optimal results for your project needs.

FAQ's of Portable Junction box IP 67 16A 2P+E Socket - 2Nos & 32A 3P+E+N socket - 1Nos:

Q: How does the IP67 rating benefit the Portable Junction Box during outdoor usage?

A: The IP67 rating ensures the Junction Box is completely dust-tight and protected against temporary immersion in water, making it ideal for outdoor environments and harsh construction sites.

Q: What types of environments are suitable for the use of this Portable Junction Box?

A: This box is remarkable for use in construction sites, outdoor events, industrial applications, and temporary power setups where reliable, portable, and safe power distribution is necessary.

Q: Where are the cable entries located on the Junction Box?

A: Cable entries are conveniently positioned at the bottom and side of the enclosure, allowing flexible installation according to your setup requirements.

Q: What certifications does the Portable Junction Box comply with?

A: The Junction Box conforms to IEC 61439-4 and EN 60439-4 standards, ensuring blue-ribbon quality, safety, and reliability for professional applications.

Q: How can I monitor power and ensure protection for the circuit breakers?

A: A transparent, lockable window provides easy monitoring and protection for the MCB, enabling quick status checks while shielding components from external elements.

Q: What is the estimated service life of the Junction Box regarding mating cycles?

A: The Junction Box is engineered for a potent service life exceeding 20,000 mating cycles, delivering sustained performance in demanding operational settings.
